INVEXA : Webcam Camera Module for Lenovo IdeaPad 3‑15ITL6 (82H8) – 5C20X02432 / 5C20X02431 / 5C20Z72187

Description

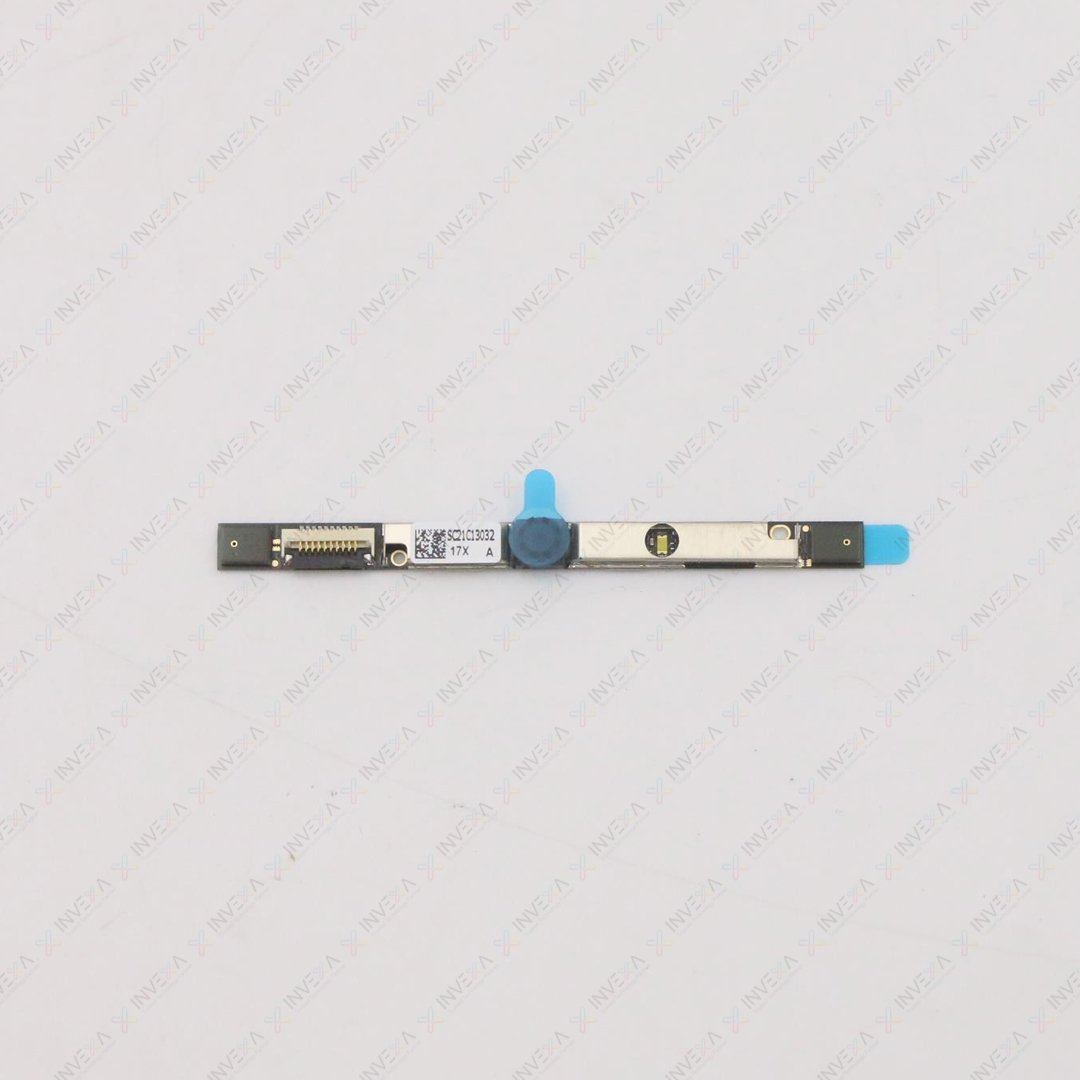

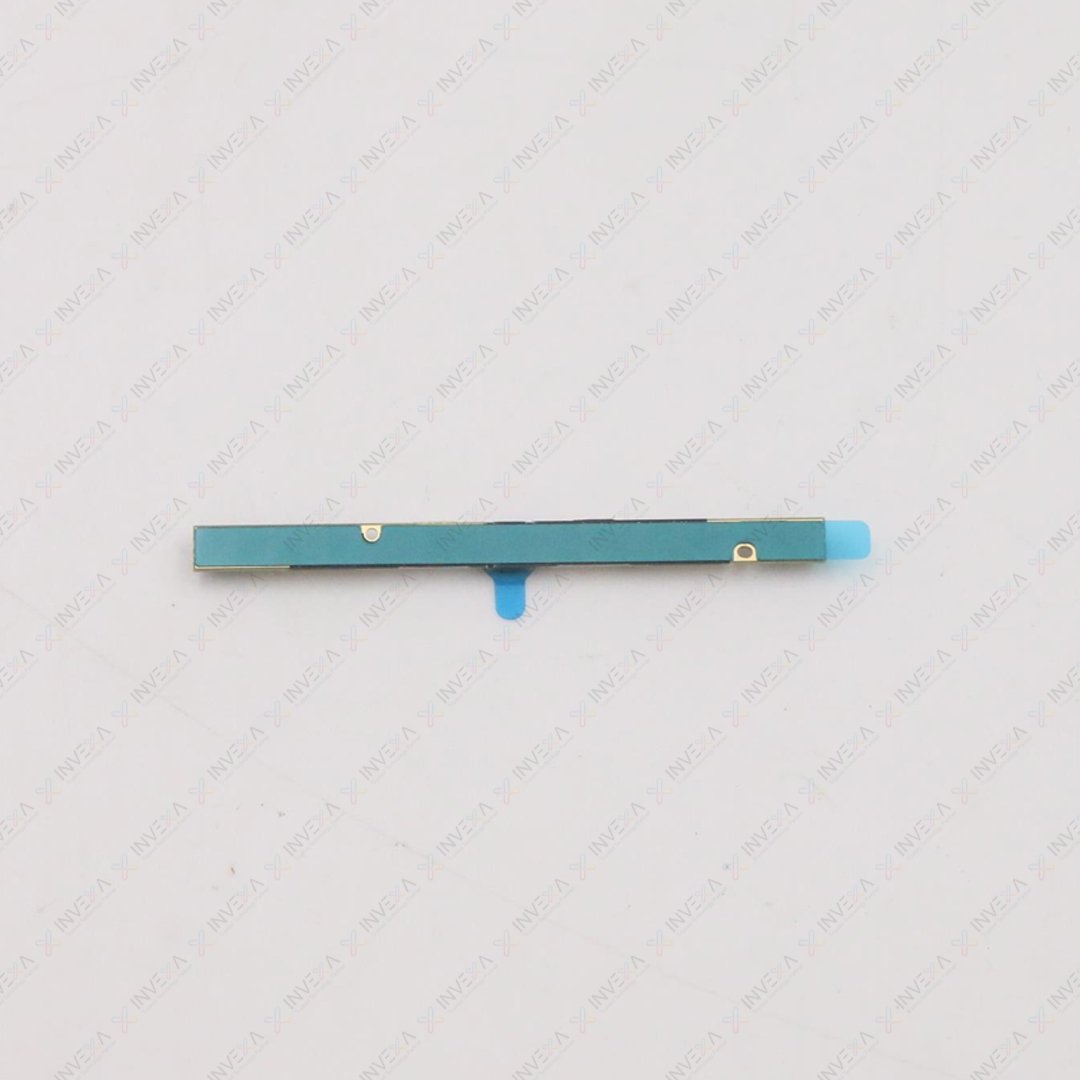

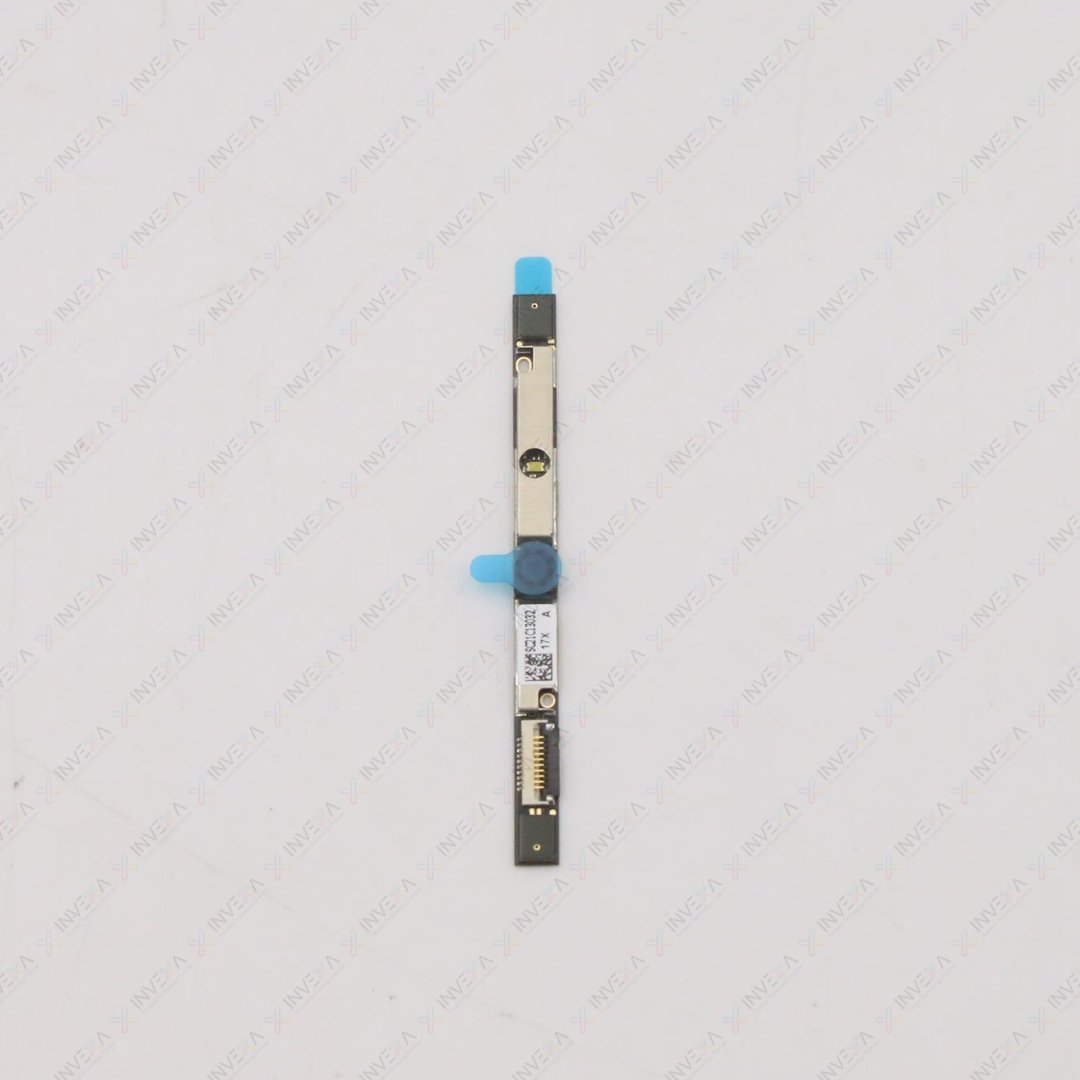

Restore clear video calls with this HD 720p webcam module designed for the Lenovo IdeaPad 3‑15ITL6.

This integrated camera is a direct replacement for the original webcam in your Lenovo IdeaPad 3‑15ITL6 (Type 82H8) laptop. It supports HD 720p resolution and includes the privacy shutter mechanism, just like the factory module. If your current camera shows a black screen, appears as “not detected,” or produces very poor quality video, this replacement can bring your webcam back to normal.psref.lenovo+3

---

Key Specifications

• Device Type: Integrated Laptop Webcam / Camera Module

• Resolution: HD 720p (1280×720)

• Focus: Fixed focus

• Features: Privacy shutter, single microphone (module may include mic or use existing mic cable depending on variant)

• Condition: New replacement (OEM‑spec / compatible)

• Common Part Numbers:

  • 5C20X02432

  • 5C20X02431
    (Always match with your existing module label or service manual.)psref.lenovo+3

---

Compatible Models

Designed primarily for:

• Lenovo IdeaPad 3‑15ITL6 (Type 82H8, 15.6″)

• Also used in closely related models such as:

  • IdeaPad 3‑14ITL6 (Type 82H7)

  • Some IdeaPad 3‑17ITL6 variants where the original camera matches the same part number

This module is intended for laptops that originally came with an HD 720p camera with privacy shutter. If your laptop had an HD (1366×768) screen with a 0.3‑MP camera, the physical module may differ; always compare your existing camera’s part number.psref.lenovo+3

---

Symptoms That This Part Can Fix

Replace your camera module if you experience:

• “No camera detected” or camera not showing in apps

• Black or frozen video feed

• Very blurry or distorted image that doesn’t improve with driver updates

• Physical damage to the camera bezel or module

• Camera failing after liquid damage or impact

---

Package Contents

• 1 × Webcam camera module for Lenovo IdeaPad 3‑15ITL6 (as pictured)

• (Cable and screws not included unless specified; reuse your original cable and mounting hardware)

---

Installation Notes

• Power off the laptop, disconnect the charger, and remove the back cover.

• Carefully remove the LCD bezel to access the camera module at the top of the screen.

• Disconnect the old camera cable, unscrew or unclip the module, and replace with the new one.

• Reassemble the bezel and test the camera in Windows before fully tightening all screws.

---

Warranty / Support (customize as needed)

• Warranty: [e.g., 30 days / 90 days replacement warranty]

• Support: Send your laptop model and a photo of your old camera module label if you need compatibility confirmation.
