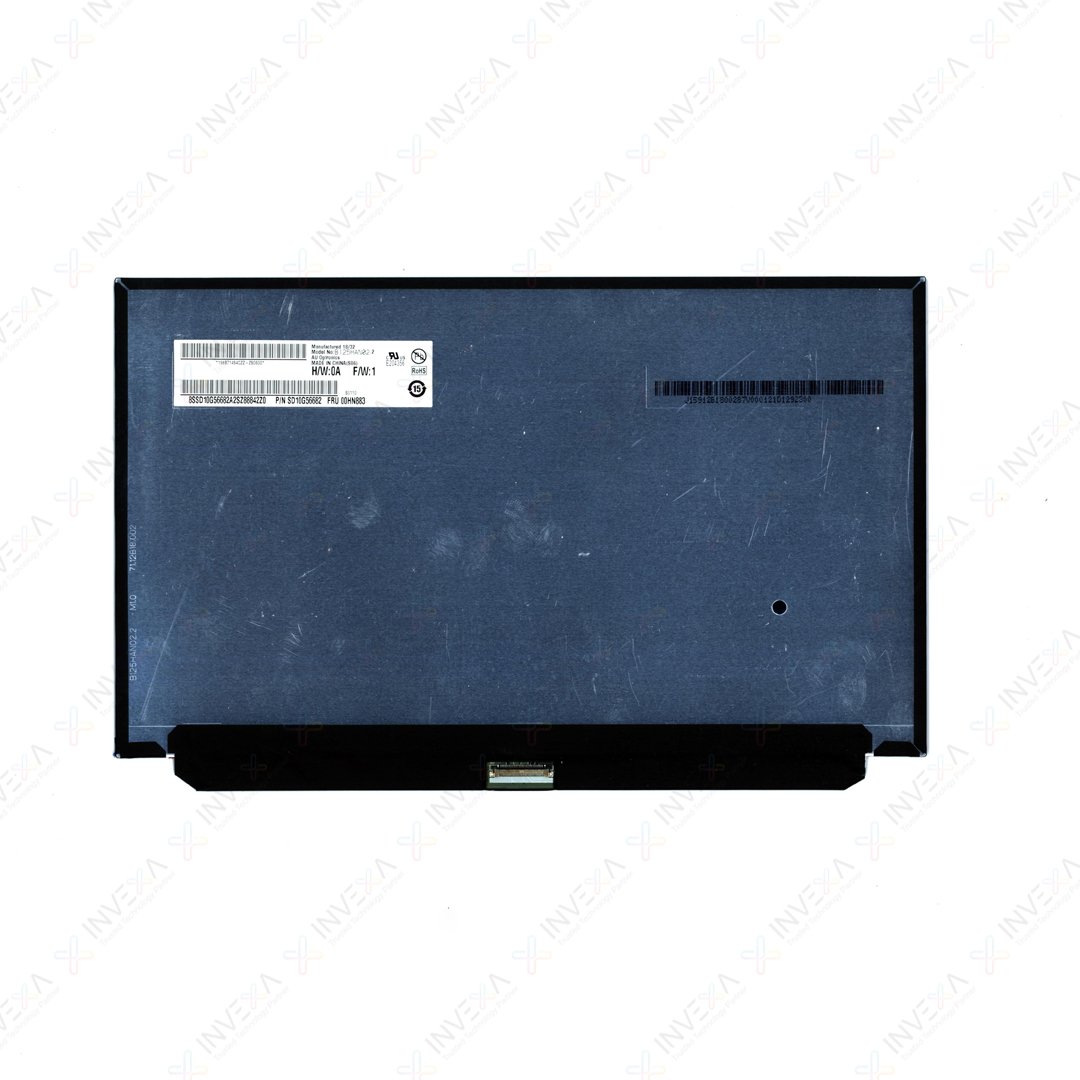

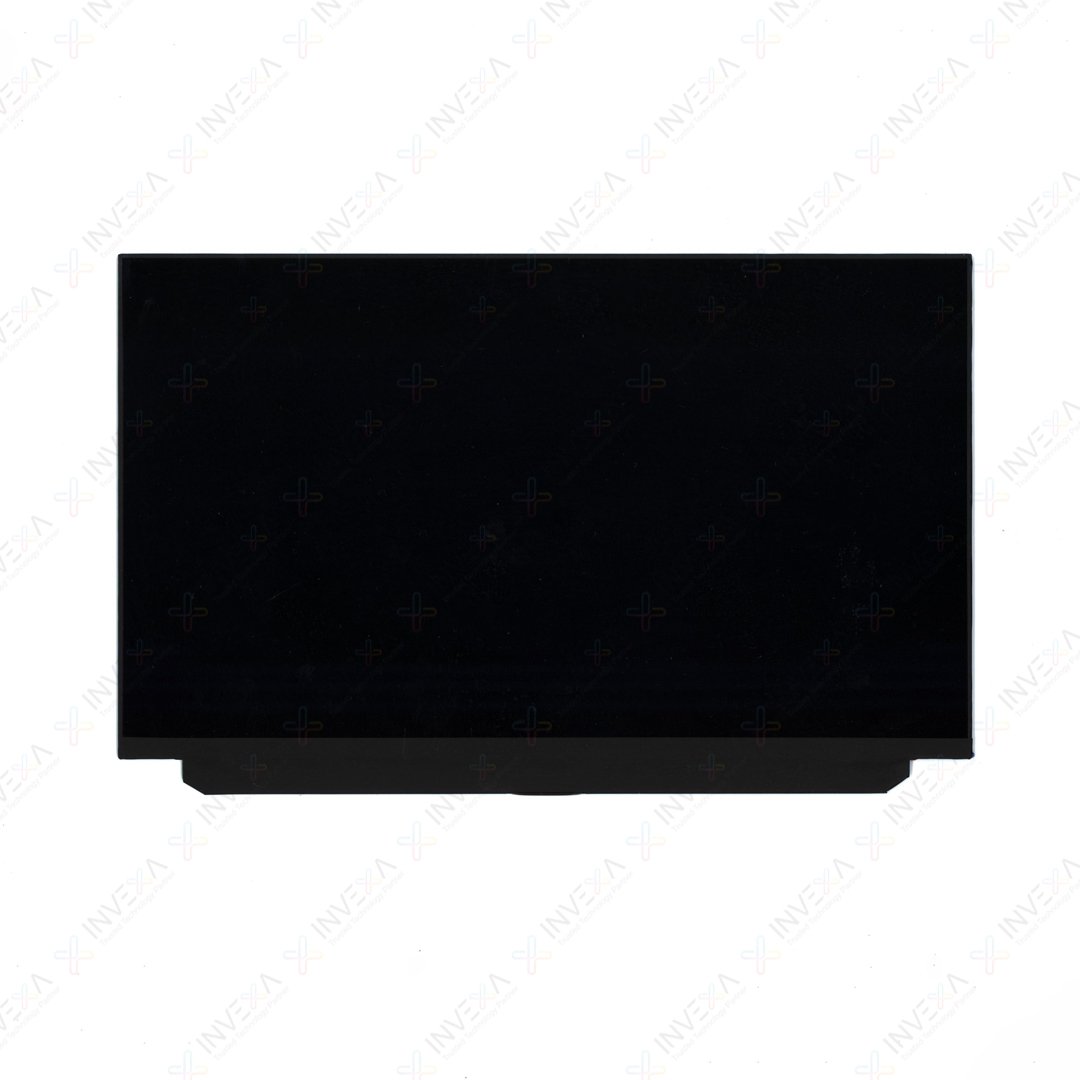

AU Optronics B125HAN02.2 12.5" Laptop Screen Replacement - Full HD 1920x1080 IPS Matte 30-Pin eDP - for Lenovo ThinkPad X260, X270, X280, Yoga 260 & HP 820 G3 - FRU 00HN883 / SD10G56682
AU Optronics B125HAN02.2 12.5" Laptop Screen Replacement - Full HD 1920x1080 IPS Matte 30-Pin eDP - for Lenovo ThinkPad X260, X270, X280, Yoga 260 & HP 820 G3 - FRU 00HN883 / SD10G56682 - Image 2
AU Optronics B125HAN02.2 12.5" Laptop Screen Replacement - Full HD 1920x1080 IPS Matte 30-Pin eDP - for Lenovo ThinkPad X260, X270, X280, Yoga 260 & HP 820 G3 - FRU 00HN883 / SD10G56682 - Image 3
AU Optronics B125HAN02.2 12.5" Laptop Screen Replacement - Full HD 1920x1080 IPS Matte 30-Pin eDP - for Lenovo ThinkPad X260, X270, X280, Yoga 260 & HP 820 G3 - FRU 00HN883 / SD10G56682 - Image 4

AU Optronics B125HAN02.2 12.5″ Laptop Screen Replacement – Full HD 1920×1080 IPS Matte 30-Pin eDP – for Lenovo ThinkPad X260, X270, X280, Yoga 260 & HP 820 G3 – FRU 00HN883 / SD10G56682

Original price was: ₹18,545.00.Current price is: ₹4,549.00.

Restore your laptop’s display with this genuine AU Optronics B125HAN02.2 12.5-inch LCD screen. Featuring a Full HD 1920×1080 resolution, IPS panel technology, and a matte anti-glare finish, this screen delivers crisp visuals and wide viewing angles. It is a direct replacement for Lenovo FRU 00HN883 and P/N SD10G56682, making it compatible with a range of ThinkPad X260, X270, X280, Yoga 260, and HP 820 G3 laptops.

Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Brand:

Description

Crystal Clear Visuals for Your Laptop

Is your laptop screen cracked, flickering, or showing dead pixels? The AU Optronics B125HAN02.2 replacement screen is the perfect solution to restore your display to like-new condition. Whether you’re working on documents, watching videos, or browsing the web, this high-quality panel delivers sharp, vibrant images with excellent color accuracy.

Genuine AU Optronics Quality

AU Optronics (AUO) is one of the world’s leading manufacturers of LCD panels, known for their reliability and performance. This B125HAN02.2 panel features AHVA (Advanced Hyper-Viewing Angle) technology, which is analogous to IPS, providing consistent colors and contrast from virtually any viewing angle.

Key Features at a Glance

  • Full HD Resolution: 1920 x 1080 pixels for sharp, detailed images

  • IPS/AHVA Panel: 85/85/85/85 viewing angles with 700:1 contrast ratio

  • Matte Anti-Glare Surface: Reduces reflections and glare for comfortable viewing

  • 30-Pin eDP Connector: Standard interface for modern laptops

  • LED Backlight: Energy-efficient WLED backlight with 12,000-hour lifespan

  • Slim Profile: 2.5mm thickness for a sleek fit in ultrabooks

  • Flicker-Free: No PWM, reducing eye strain during extended use

Wide Compatibility

This screen is a direct replacement for Lenovo FRU 00HN883 and P/N SD10G56682. It is compatible with a wide range of laptops, including:

  • Lenovo ThinkPad X260 Series

  • Lenovo ThinkPad X270 Series

  • Lenovo ThinkPad X280 Series

  • Lenovo ThinkPad Yoga 260

  • Lenovo ThinkPad A275

  • HP ProBook 820 G3

Cross-Reference Part Numbers

This screen is also a compatible replacement for the following part numbers:

  • AUO: B125HAN02.2, B125HAN02.0

  • Lenovo FRU: 00HN883, 00HN884, 00NY418, 00NY682, 01EN374, 01YN106, SD10G56682, SD10L79933, SD10M67994

  • Other Panels: N125HCE-GN1, NV125FHM-N82, NV125FHM-N83, M125NWF4-R3, M125NWF4-R1, LP125WF2-SPB2, LP125WF2-SPB3, LP125WF4-SPH1

What’s in the Box: 1x AU Optronics B125HAN02.2 12.5-inch LCD Screen

Warranty: Varies by seller (typically 3 months)

Product Specifications

Specification Details
Brand AU Optronics (AUO)
Model Number B125HAN02.2
Screen Size 12.5 inches
Resolution 1920 x 1080 (Full HD)
Pixel Density 176 PPI
Panel Type a-Si TFT-LCD, AHVA (IPS equivalent)
Display Mode AHVA, Normally Black, Transmissive
Brightness 300 cd/m² (Typical)
Contrast Ratio 700:1 (Typical)
Viewing Angle 85/85/85/85 (Typical) (CR>=10)
Colors 16.7M, 50% (CIE1931)
Pixel Arrangement RGB Vertical Stripe
Display Area 276.48 x 155.52 mm
Outline Dimensions 282.4 x 179.32 x 2.5 mm
Surface Treatment Matte (Anti-Glare)
Response Time 25 ms (Typical) (Tr+Td)
Refresh Rate 60 Hz

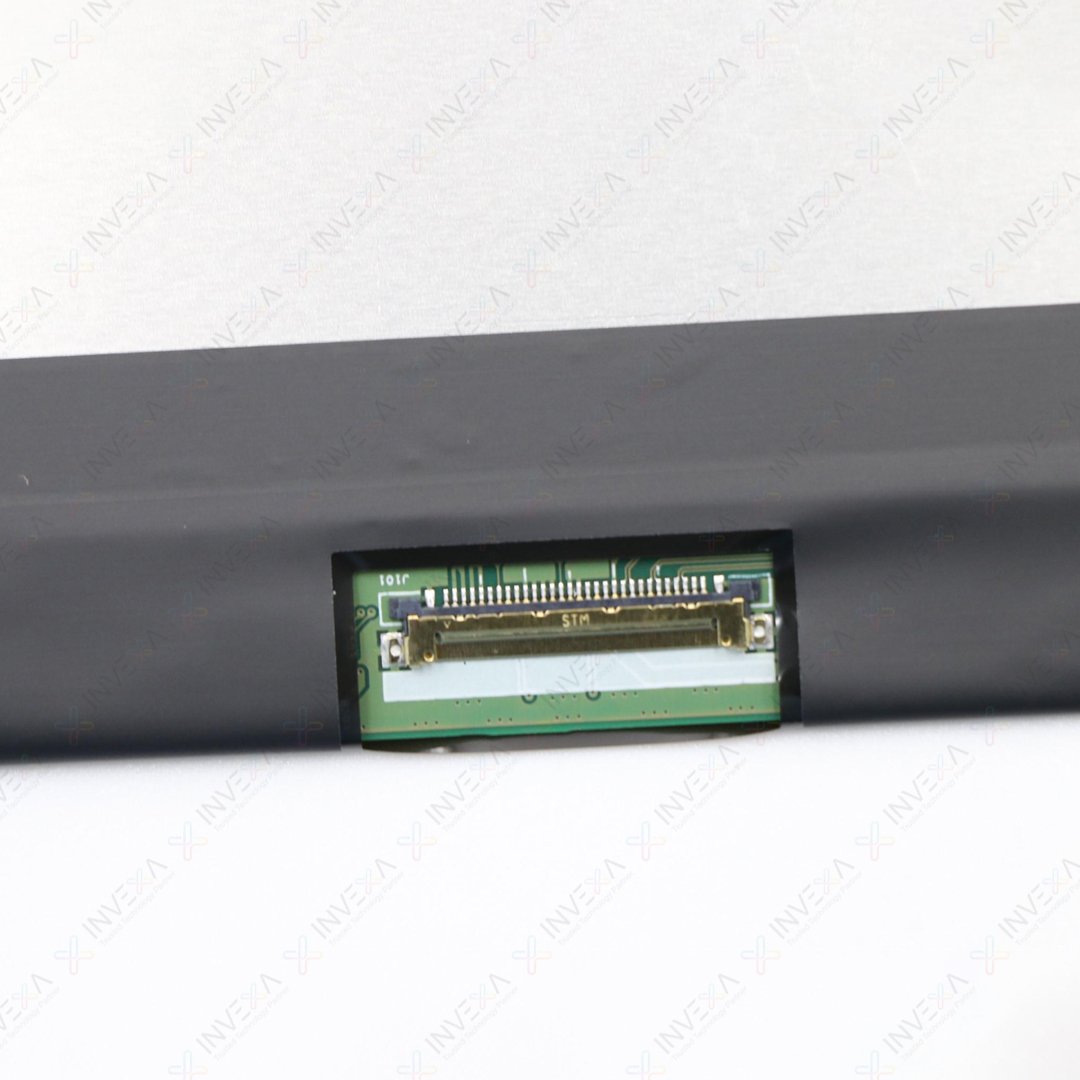

Signal Interface eDP (2 Lanes), 30 Pins
Input Voltage 3.3V (Typical)
Backlight WLED, 12K Hours, with LED Driver
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 60°C
Weight Approx. 400 g

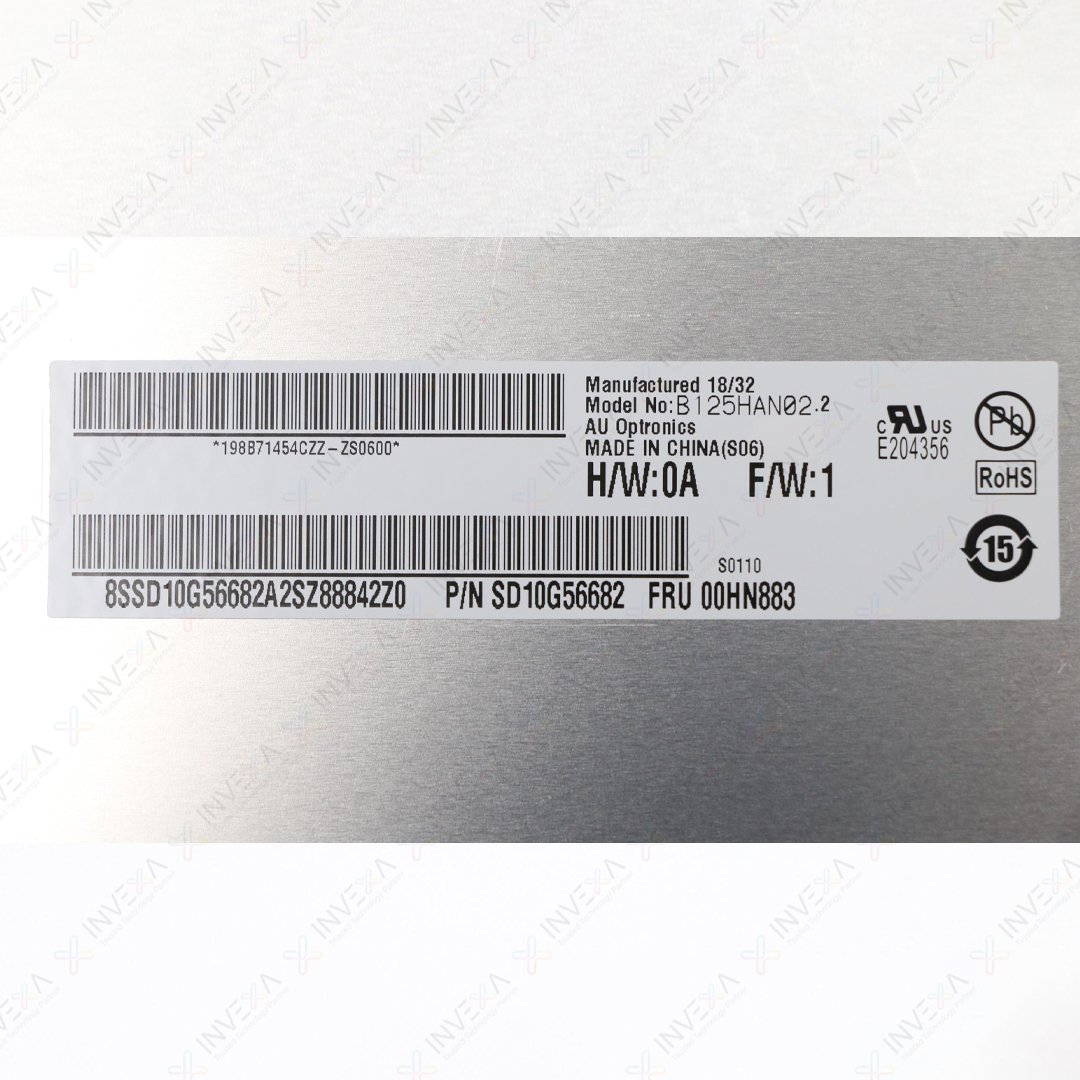

Lenovo FRU 00HN883
Lenovo P/N SD10G56682
H/W Version 0A
